Reducing Branch Tees - Stainless Steel Tube Fittings
| Tube Size O.D. |

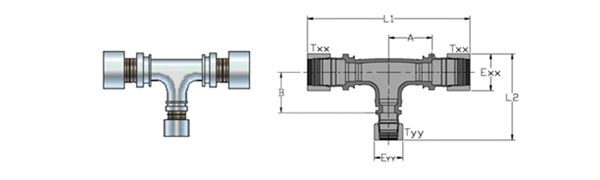

Ordering Information | Dimensions | LOKTOOLTM | |||||||
| Fitting Material | Shape | Fitting Size TXX-TYY | Part Length (Uninstalled) L1 |
Part Length (Uninstalled) L2 |
Exx |
Eyy |
Take -
Out A |
Take -
Out B |
Installation Tool Kit |
|
| 3/8 - 1/4 | SS | - RTEE - | T06-T04 | 4.82 | 2.65 | 0.72 | 0.54 | 1.15 | 1.42 | IT10 / IT20 |
| 1/2 - 3/8 | SS | - RTEE - | T08-T06 | 4.60 | 2.84 | 0.87 | 0.72 | 0.96 | 1.15 | IT10 / IT20 |
| 5/8 - 1/2 | SS | - RTEE - | T10-T08 | 5.16 | 3.10 | 1.05 | 0.87 | 1.05 | 1.24 | IT10 / IT20 |
| 3/4 - 3/8 | SS | - RTEE - | T12-T06 | 5.47 | 3.40 | 1.17 | 0.72 | 1.18 | 1.50 | IT10 / IT20 |
| 3/4 - 1/2 | SS | - RTEE - | T12-T08 | 5.95 | 3.70 | 1.17 | 0.87 | 1.41 | 1.73 | IT10 / IT20 |
| 3/4 - 5/8 | SS | - RTEE - | T12-T10 | 5.47 | 3.45 | 1.17 | 1.05 | 1.17 | 1.34 | IT20 |
| 7/8 - 3/4 | SS | - RTEE - | T14-T12 | 5.57 | 3.33 | 1.19 | 1.17 | 1.31 | 1.17 | IT20 |
| 1 - 3/8 | SS | - RTEE - | T16-T06 | 5.78 | 3.50 | 1.37 | 0.72 | 1.30 | 1.56 | IT20 |
| 1 - 1/2 | SS | - RTEE - | T16-T08 | 5.78 | 3.56 | 1.37 | 0.87 | 1.30 | 1.53 | IT20 |
| 1 - 3/4 | SS | - RTEE - | T16-T12 | 5.78 | 3.42 | 1.37 | 1.17 | 1.30 | 1.17 | IT20 |
| 1 - 7/8 | SS | - RTEE - | T16-T14 | 5.78 | 3.47 | 1.37 | 1.19 | 1.30 | 1.31 | IT20 |
| 1-1/4 - 1 | SS | - RTEE - | T20-T16 | 7.83 | 4.50 | 1.80 | 1.37 | 1.88 | 2.02 | IT45 |
| 1-1/2 - 1 | SS | - RTEE - | T24-T16 | 8.83 | 5.58 | 2.10 | 1.37 | 2.29 | 2.94 | IT45 |
| 1-1/2 - 1-1/4 | SS | - RTEE - | T24-T20 | 8.83 | 5.38 | 2.10 | 1.80 | 2.29 | 2.29 | IT45 |
| 2-1 | SS | - RTEE - | T32-T16 | 11.72 | 5.38 | 2.55 | 1.37 | 3.26 | 2.52 | IT45 & IT50 |
| 2 - 1-1/2 | SS | - RTEE - | T32-T24 | 11.72 | 6.62 | 2.55 | 2.10 | 3.21 | 3.22 | IT50 / IT60 |
