Male Connectors - Stainless Steel Tube Fittings
| Tube Size OD |
Ordering Information | Dimensions | Thread | LOKTOOLTM | |||||
| Fitting Material | Shape | Fitting Size TXX - YYMPT | Part Length (Uninstalled) L |
E |
Take -
Out A |

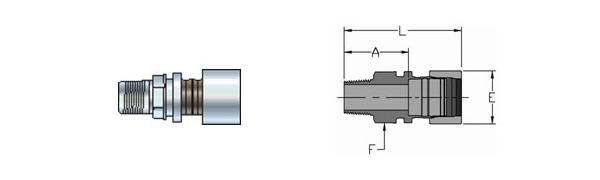

Across Wrench Flats F |
Installation Tool Kit |
||
| 1/4 | SS | -ADPT- | T04-1/4 MPT | 2.34 | 0.54 | 1.47 | 0.56 | 1/4-18 | IT04/IT10/IT20 |
| SS | -ADPT- | T04-1/2 MPT | 2.54 | 0.54 | 1.67 | 0.88 | 1/2-14 | IT04/IT10/IT20 | |
| 3/8 | SS | -ADPT- | T06-1/4 MPT | 2.67 | 0.72 | 1.41 | 0.56 | 1/4-18 | IT10 / IT20 |
| SS | -ADPT- | T06-1/2 MPT | 2.86 | 0.72 | 1.60 | 0.88 | 1/2-14 | IT10 / IT20 | |
| 1/2 | SS | -ADPT- | T08-3/8 MPT | 2.41 | 0.87 | 1.07 | 0.69 | 3/8 - 18 | IT10 / IT20 |
| SS | -ADPT- | T08-1/2 MPT | 2.96 | 0.87 | 1.62 | 0.92 | 1/2 - 14 | IT10 / IT20 | |
| SS | -ADPT- | T08-3/4 MPT | 3.17 | 0.87 | 1.83 | 1.13 | 3/4 - 14 | IT10 / IT20 | |
| 3/4 | SS | -ADPT- | T12-1/2 MPT | 3.20 | 1.17 | 1.64 | 0.88 | 1/2 - 14 | IT20 |
| SS | -ADPT- | T12-3/4 MPT | 3.42 | 1.17 | 1.86 | 1.13 | 3/4 - 14 | IT20 | |
| SS | -ADPT- | T12-1 MPT | 3.75 | 1.17 | 2.18 | 1.38 | 1 - 11-1/2 | IT20 | |
| 1 | SS | -ADPT- | T16-1/4 MPT | 3.20 | 1.37 | 1.61 | 0.56 | 1/4-18 | IT20 / IT45 |
| SS | -ADPT- | T16-1/2 MPT | 3.86 | 1.53 | 1.86 | 0.94 | 1/2-14 | IT20 / IT45 | |
| SS | -ADPT- | T16-3/4 MPT | 3.40 | 1.37 | 1.81 | 1.13 | 3/4-14 | IT20 / IT45 | |
| SS | -ADPT- | T16-1 MPT | 3.72 | 1.37 | 2.14 | 1.38 | 1 - 11-1/2 | IT20 / IT45 | |
| 1-1/4 | SS | -ADPT- | T20-1 1/4 MPT | 4.74 | 1.80 | 2.50 | 1.75 | 1-1/4 - 11-1/2 | IT45 |
| 1-1/2 | SS | -ADPT- | T24- 1 1/2 MPT | 4.69 | 2.10 | 2.57 | 2.00 | 1-1/2 - 11-1/2 | IT45/IT50/IT60 |
