90° Elbows - Stainless Steel Tube Fittings
| Tube Size OD |

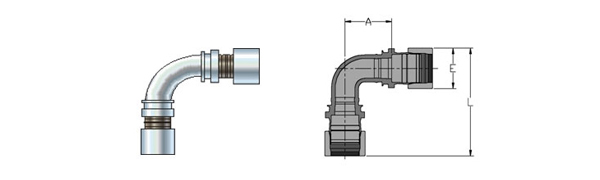

Ordering Information | Dimensions | LOKTOOL™ | ||||
| Fitting Material | Shape | Fitting Size TXX | Part Length (Uninstalled) L |
E |
Take -
Out A |
Standard
Tool Installation |
|
| 1/4 | SS | -EL90- | T04 | 2.03 | 0.54 | 3.33 | IT04 / IT10 /IT20 |
| 3/8 | SS | -EL90- | T06 | 2.82 | 0.72 | 1.20 | IT10 / IT20 |
| 1/2 | SS | -EL90- | T08 | 2.78 | 0.87 | 1.01 | IT10 / IT20 |
| 5/8 | SS | -EL90- | T10 | 3.10 | 1.05 | 1.05 | IT10 / IT20 |
| 3/4 | SS | -EL90- | T12 | 3.56 | 1.17 | 1.41 | IT20 |
| 7/8 | SS | -EL90- | T14 | 3.62 | 1.19 | 1.55 | IT20 |
| 1 | SS | -EL90- | T16 | 4.16 | 1.37 | 2.02 | IT20 |
| 1 – 1/4 | SS | -EL90- | T20 | 4.69 | 1.80 | 1.88 | IT45 |
| 1 – 1/2 | SS | -EL90- | T24 | 5.33 | 2.10 | 2.29 | IT45 / IT50 |
