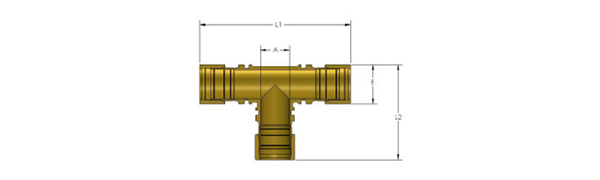

Tees - BR-TEE-TXX
| Tubing Size TXX |
Ordering Information | Dimensions | LOKTOOLTM | |||||
| Fitting Material | Shape | Fitting Size TXX | Part Length L1 | Part Length L2 | E | Take-Out - A | Installation Tool Kit | |
| 1/2 | BR | -TEE-FRG- | T08 | 4.57 | 2.99 | 0.91 | 1.05 | IT20 |
| 5/8 | BR | -TEE-FRG- | T10 | 7.16 | 4.28 | 1.02 | 2.17 | IT20 |
| 3/4 | BR | -TEE-FRG- | T12 | 2.79 | 2.73 | 0.71 | 1.05 | IT20 |
| 1 | BR | -TEE-FRG- | T16 | 6.46 | 3.99 | 1.53 | 2.39 | IT50 |
| Tubing Size TXX |
Ordering Information | Dimensions | LOKTOOLTM | |||||||
| Fitting Material | Shape | Fitting Size TXX | Part Length L1 | Part Length L2 | E1 | E2 | Take - Out A | Take - Out B | Installation Tool Kit | |
| 3/4 - 1/2 | BR | -RTEE- | T12-T08 | 5.42 | 2.99 | 1.19 | 0.91 | 1.16 | 1.05 | IT20 |
| 1 - 3/4 | BR | -RTEE- | T16-T12 | 6.47 | 3.73 | 1.53 | 1.19 | 1.20 | 1.41 | IT45 |
| 1 - 1/2 | BR | -RTEE- | T16-T08 | 6.47 | 3.40 | 1.53 | 0.91 | 1.20 | 1.40 | IT45 |
