90° Elbows - BR-EL90-FRG-TXX

90° Elbows - BR-EL90-FRG-TXX

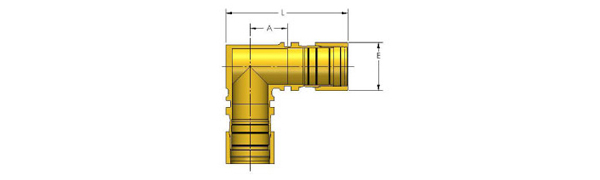

Tubing Size TXX Ordering Information Dimensions LokToolTM
Fitting
Material
Shape Fitting Size
TXX
Part Length (Uninstalled)
L1
Part Length (Uninstalled)
L2

E
Take-Out
A
Installation
Tool Kit
1/2 BR - EL 90 - T08 2.79 2.73 0.91 1.05 IT20
5/8 BR - EL 90 - T10 4.09 4.28 1.02 2.17 IT20
3/4 BR - EL 90 - T12 3.53 3.41 1.19 1.16 IT20
1 BR - EL 90 - T16 4.01 3.99 1.53 1.19 IT50
All dimensions are for reference only and are subject to change.
