Gauge Port Caps - BR-GCAP-TXX

Gauge Port Caps - BR-GCAP-TXX

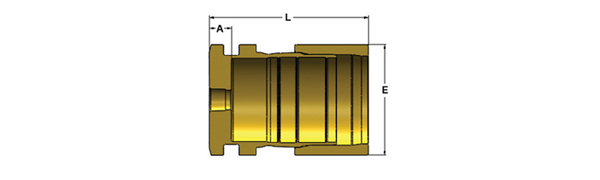

Tubing Size TXX Ordering Information Dimensions LOKTOOLTM
FittingMaterial Shape Fitting SizeTXX Part Length (Uninstalled) L E Take-Out A InstallationTool Kit
1/2 BR -GCAP- T08 1.64 0.91 0.41 IT20
5/8 BR -GCAP- T10 1.81 1.02 0.40 IT20
3/4 BR -GCAP- T12 1.96 1.19 0.41 IT20
1 BR -GCAP- T16 2.40 1.53 0.36 IT50
1-1/4 BR -GCAP- T20 2.68 1.86 0.37 IT50
1 – 1/2 BR -GCAP- T24 3.00 2.21 0.37 IT50
2 BR -GCAP- T32 3.81 2.88 0.37 IT50
Thread size is 1/8”-27-FPT.All dimensions are for reference only and are subject to change.
